ACCESSORIES


 Camera-Mounts

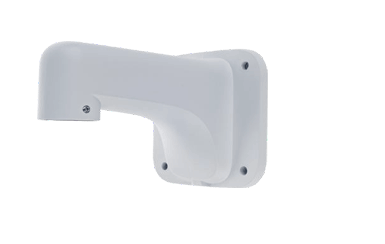

EGS-501

WALL MOUNT BRACKET

Specifications;

•Applicable Model: Please see "Accessory Selection"
•Material Aluminum alloy
•Color White
•Operating Humidity 0% - 90% RH
•Load Bearing 3 kg (6.61 lb)
•Product Dimensions 141 × 116.2 × 116.2mm (5.55 × 4.57× 4.57")
•Product Weight 0.25kg (0.55 lb)

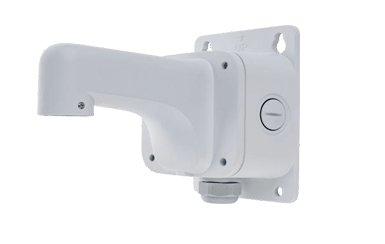

EGS-502

Wall Mount Bracket + BACK BOX

Specifications;
•Applicable Model: Please see "Accessory Selection"
•Material Aluminum alloy
•Color White
•Operating Humidity 0% - 90% RH
•Load Bearing 3 kg (6.61 lb)
•Product Dimensions 201.8 × 120.2 × 167.4mm (7.94 × 4.73× 6.59")
•Product Weight 0.85kg (1.87 lb)

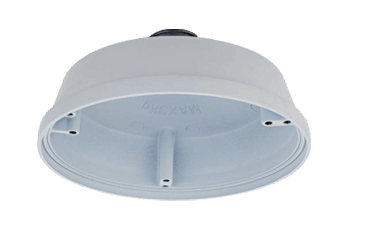

EGS-206

Bracket Mount Adapter

Specifications;

•Applicable Model: Please see "Accessory Selection"
•Material Aluminum alloy
•Color White
•Operating Humidity 0% - 90% RH
•Load Bearing 3 kg (6.61 lb)
•Product Dimensions φ145 × 73mm (φ5.71 × 2.87")
•Product Weight 0.21kg (0.46 lb)

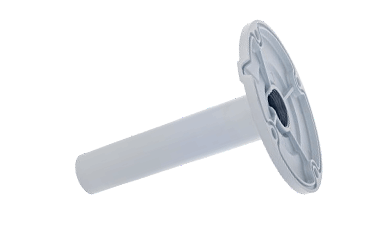

EGS-402

Pendant Mount Bracket

Specifications;

•Applicable Model: Please see "Accessory Selection"
•Material Aluminum alloy
•Color White
•Operating Humidity 0% - 90% RH
•Load Bearing 3 kg (6.61 lb)
•Product Dimensions φ140 × 264mm (φ5.51 × 10.4")
•Product Weight 0.56kg (1.23 lb)

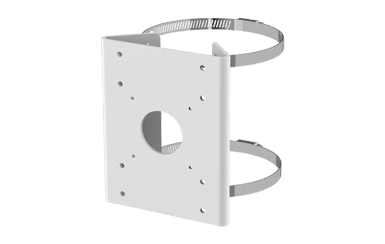

EGS-101

Pole Mount Bracket

Specifications;
•Application Model Please see "Accessory Selection"
•Material Aluminum alloy, Stainless steel
•Color White
•Load Bearing 4 kg (8.82 lb)
•Embrace Hoop Diameter 130 ~ 152 mm (5.12 ~ 5.98”)
•Product Dimensions 130.2 × 46 × 170mm (5.13 × 1.81 × 6.69”)
•Product Weight 0.41 kg (0.9 lb)

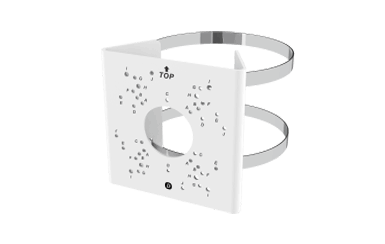

EGS-627D

Pole Mount Bracket


Specifications;
•Application Model See Camera Spec sheets
•Material Aluminum alloy
•Color White
•Operating Humidity 0% - 90% RH
•Load Bearing 8 kg (17.64 lb.)
•Embrace Hoop Diameter 130 to 152 mm (5.12 to 5.98”)
•Product Dimensions 121 × 120 × 52mm
•Product Weight 0.5 kg (1.1 lb.)

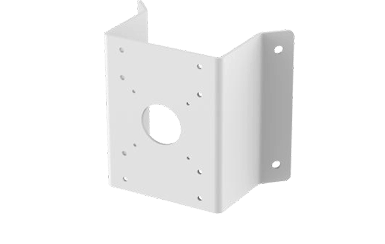

EGS-102

Corner Mount Bracket

Specifications;
•Application Model Please see "Accessory Selection"
•Material Aluminum alloy
•Color White
•Load Bearing 4 kg (8.82 lb)
•Product Dimensions 176.5 × 103.3 × 170 mm (6.95 × 4.07 × 6.69”)
•Product Weight 0.5 kg (1.1 lb)

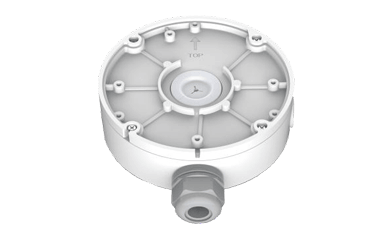

EGS-645D

Junction Box with Turret Camera

Specifications;

•Applicable Model: Please see "Accessory Selection"
•Material Aluminum alloy + Plastic
•Color White
•Operating Humidity 0% - 90% RH
•Load Bearing 3 kg (6.61 lb)
•Product Dimensions φ141.8 × 51mm (φ5.58 × 2.0")
•Product Weight 0.58kg (0.66 lb)

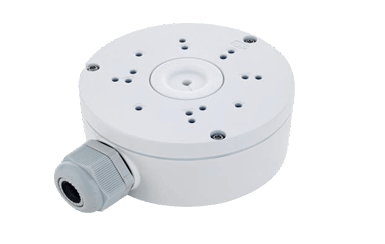

EGS-656A

Junction Box with Bullet

Specifications;
•Applicable Model: Please see "Accessory Selection"
•Material Aluminum alloy + Plastic
•Color White
•Operating Humidity 0% - 90% RH
•Load Bearing 3 kg (6.61 lb)
•Product Dimensions φ110 × 48mm (φ4.33 ×1.89")
•Product Weight 0.3kg (0.66 lb)


EGS-649B

Corner Mount Bracket

Specifications;
•Application Model Please see "Accessory Selection"
•Material Aluminum alloy
•Color White
•Operating Humidity 0% - 90% RH
•Load Bearing 4 kg (8.82 lb)
•Product Dimensions φ121 × 46mm (Ф4.76 × 1.81")
•Product Weight 0.42 kg (0.93 lb)
